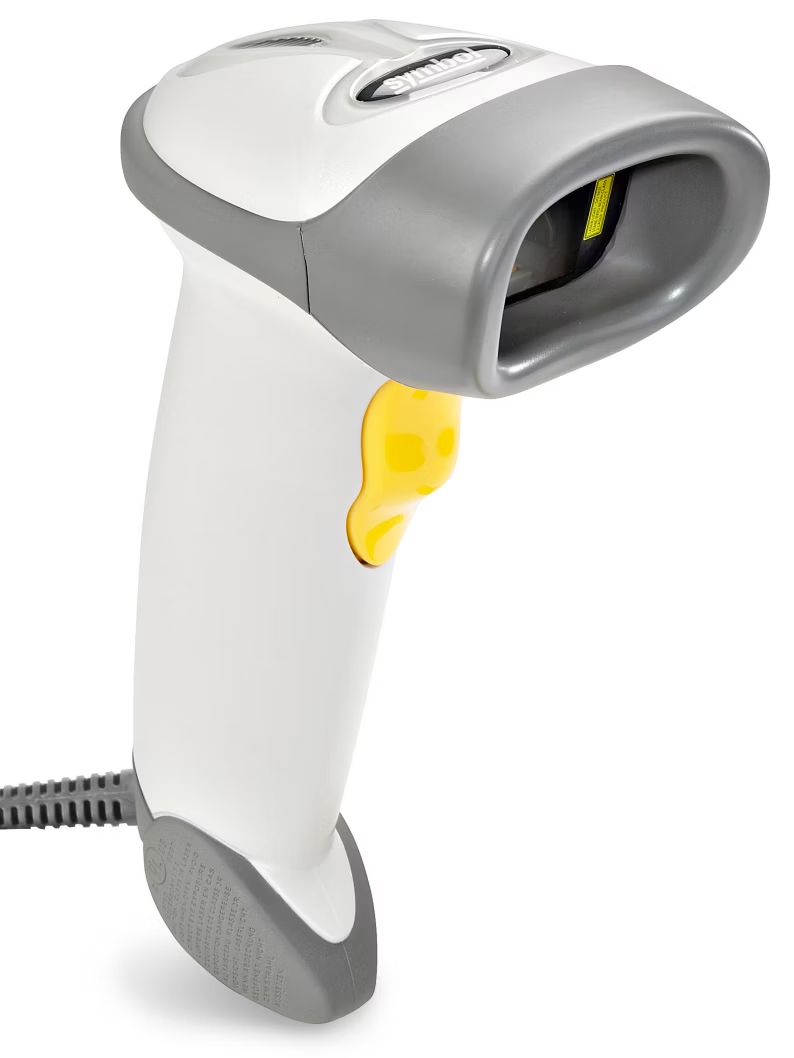

Symbol LS 2208 Hand Held Scanner

Physical Characteristics

Dimensions:

6 in. H x 2.5 in. W x 3.34 in. D
15.2 cm H x 6.3 cm W x 8.4 cm

Weight:

5.15 oz./146 gm

Voltage:

5 volts +/- 10%

Current:

130 mA typical, 175 mA max

Stand-by Current (USB suspend current)

<500µA

Power Sources:

Host power or external power supply

Color:

Cash Register White or Twilight Black

Performance Characteristics

Scanner Type:

Bi-directional

Light Source:

650 nm visible laser diode

Scan Rate:

100 scans per second typical

Nominal Working Distance:

From contact to 17 in./43 cm on 100% U.P.C./EAN symbols

Print Contrast:

20% minimum reflective difference

Roll (Tilt): ¹

1 +/-  30 degrees

Pitch: ²

2 +/-  65 degrees

Skew (Yaw): ³

3 +/-  60 degrees

Decode Capability:

UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants, Chinese 2 of 5

Interfaces Supported:

RS232, Keyboard Wedge, Wand, IBM 468X/9X, USB (PC/MAC), Synapse and Undecoded

User Environment

Operating Temperature:

32° to 122° F/0° to 50° C

Storage Temperature:

-40° to 158° F/-40° to 70° C

Humidity:

5% to 95% relative humidity, noncondensing

Drop Specifications:

Unit functions normally after repeated 5 ft./1.5 m drops to concrete

Ambient Light Immunity:

Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight

Electrostatic Discharge:

Conforms to 15 kV air discharge and 8 kV of contact discharge

Accessories

Hands-Free Intellistand™

20-61019-01 or 20-61019-02

Regulatory

Electrical Safety:

Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950

EMI/RFI:

FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori.

Laser Safety:

CDRH Class II, IEC Class 2

Warranty

The LS 2208 is warranted against defects in workmanship and materials for a period of 5 years (60 months) from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details.
