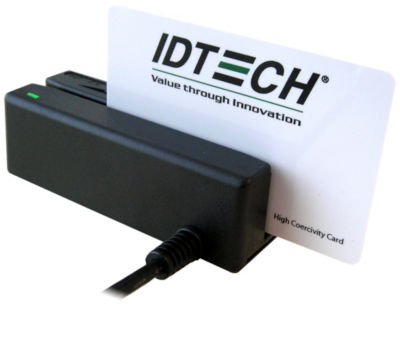

ID Tech's MiniMag fits in tight places.
The MiniMag Intelligent Swipe Reader is designed for POS and desktop applications where space is at a premium. The entire unit is just 90mm long (about the length of a credit card), giving it the smallest footprint of any unit with comparable features.
The MiniMag is an intelligent, programmable MagStripe reader. MiniMag provides a wide range of functionality and value in a convenient package size. The entire unit is just 90mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. Programming is easy using ID TECH's Magswipe PC software.
Edits and formats data
The MiniMag is a fully intelligent swipe reader that can be programmed to divide, rearrange, edit, and validate fields of magnetic card data. It automatically distinguishes between AAMVA and CA DMV formats.
Reads magnetic stripes. The MiniMag reads up to three tracks of information with a single swipe in either direction. Its standard-length slot makes it easy to use. Both beeper* and LED indicators signal a successful read.
Versatile, low cost.
The MiniMag Intelligent Swipe Reader delivers exceptional functionality and value in the smallest possible package. It can be used as a free-standing unit, or permanently mounted using the threaded inserts in the bottom of the reader. (The cable can exit through the bottom as well.) TTL, RS-232, keyboard wedge, and USB/Keyboard interfaces are available.
Id Tech MiniMag Features & Benefits
Small footprint to fit in tight places
Reads up to 3 tracks of information
Bi-directional swipe reading
Superior reading of high jitter, scratched, and worn MagStripe cards
Reliable for over 1,000,000 card swipes
Threaded inserts for mounting
Reads ISO7811, AAMVA, & most other card data formats
Magswipe PC software makes configuration changes easy
JPOS & OPOS support for all interfaces is provided
2 year warranty
Size: 3.54 x 1.34 x 1.10 inches (L X W X H)
Color: beige or black
Swipe speeds from 3 to 60 inches per second
Interfaces: Keyboard, RS232, USB/Keyboard, USB/CDC, USB/HID and RS232 Port-Powered
Fully supports USB 2.0
 RoHS Compliant
ID TECH MiniMag Installation Instructions (.pdf 289KB)
ID TECH MiniMag Specifications (.pdf 4KB)
*Order Online Id Tech's MiniMag Magnetic Stripe Card Reader (P/N IDMB-334112B) featuring the MiniMag, Tracks 1 & 2, USB Interface, and Cable. Color: Black. RoHS compliant.
|
|  | | Id Tech Minimag USB Magnetic Stripe Card Readers
| | |  | | Id Tech IDMB-334112 MiniMag USB Magnetic Stripe Reader (Track 1 & 2, with USB Interface & Cable) - Color: Beige
Regular Price: $108.00
Web Price: $59.80 | | |  | | Id Tech IDMB-334133 MiniMag USB Magnetic Stripe Reader (Tracks 1, 2, & 3 with USB Interface and Cable) - Color: Beige
Regular Price: $120.00
Web Price: $62.10 | | |  | | Id Tech IDMB-334133B MiniMag USB Magnetic Stripe Reader (Tracks 1, 2 & 3 with USB Interface and Cable) - Color: Black
Regular Price: $120.00
Web Price: $62.10 | | |  | | Id Tech 3301-12B MiniMag Swipe Reader (Tracks 1 and 2, with Undecoded Interface and Cable). Color: Black
Regular Price: $79.00
Web Price: $51.10 | | |  | | Id Tech IDMB-336112B MiniMag Swipe Reader (Tracks 1 and 2 with USB-CDC Interface) - Color: Black
Regular Price: $108.00
Web Price: $59.80 | | |  | | Id Tech IDMB-334133BX MiniMag 2 (USB Interface, Keyboard Emulation and 3-Track MSR - Cable Exiting Bottom) - Color: Black
Regular Price: $128.00
Web Price: $66.10 | | |  | | Id Tech DAT3331-12UB Datatel MSR, USB Tracks 1 & 2, Custom Program, Color: Black
Regular Price: $150.00
Web Price: $85.10 | | |  | | Id Tech Minimag Keyboard Wedge PS/2 Magnetic Stripe Card Readers
| | |  | | Id Tech IDMB-333112 MiniMag KBW Magnetic Stripe Reader (Track 1 & 2, with Keyboard Wedge Interface & Cable) - Color: Beige
Regular Price: $108.00
Web Price: $59.80 | | |  | | Id Tech IDMB-333112B MiniMag KBW Magnetic Stripe Reader (Track 1 & 2, with Keyboard Wedge Interface & Cable) - Color: Black
Regular Price: $108.00
Web Price: $59.80 | | |  | | Id Tech IDMB-333133 MiniMag Keyboard Wedge Magnetic Stripe Reader (Track 1, 2 & 3 with Wedge Interface, Cable, and Power Supply) - Color: Beige
Regular Price: $120.00
Web Price: $62.10 | | |  | | Id Tech IDMB-333133B MiniMag Keyboard Wedge Magnetic Stripe Reader (Track 1, 2 & 3 with Wedge Interface, Cable, and Power Supply) - Color: Black
Regular Price: $120.00
Web Price: $62.10 | | |  | | Id Tech Minimag RS232 Magnetic Stripe Card Readers
| | |  | | Id Tech IDMB-332112B MiniMag RS232 Magnetic Stripe Reader (Tracks 1 & 2, with Serial Interface, Cable, and Power Supply) - Color: Black
Regular Price: $108.00
Web Price: $59.80 | | |  | | Id Tech IDMB-337112B MiniMag RS232 Magnetic Stripe Reader (Track 1 & 2, with Serial Interface, Cable, and Power Supply) - Color: Beige
Regular Price: $108.00
Web Price: $59.80 | | |  | | Id Tech IDMB337112B Port-Powered MiniMag Swipe Reader (Tracks 1 and 2, DB9-Pin and Serial Interface) - Color: Black
Regular Price: $108.00
Web Price: $59.80 | | |  | | Id Tech Minimag Undecoded Magnetic Stripe Card Readers
| | |  | | Id Tech IDT330112 MiniMag Swipe Reader (Tracks 1 and 2, with Undecoded Interface and Cable). Color: Beige
Regular Price: $79.00
Web Price: $51.10 | |
|
